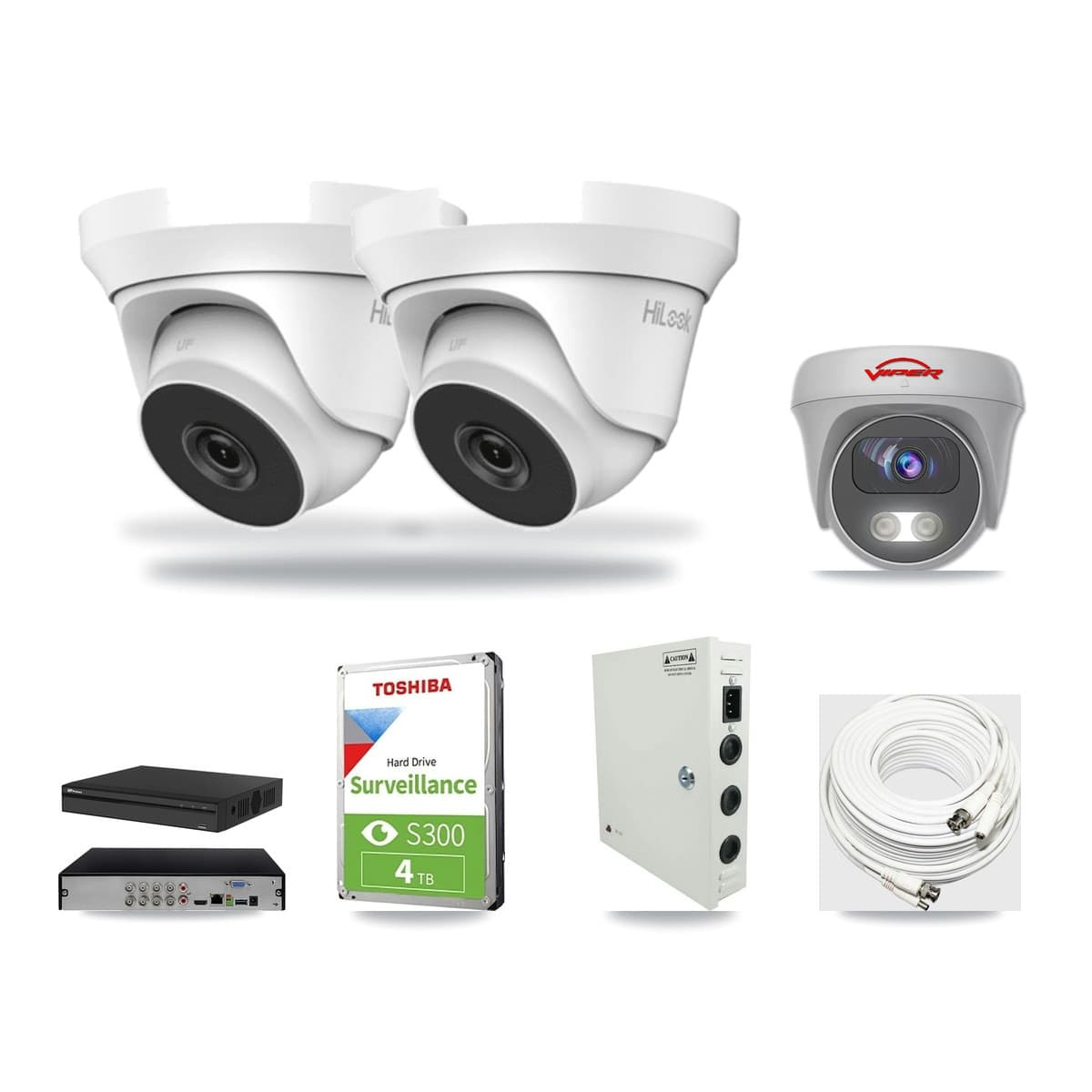

What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
3 cameras included, uses analogue cameras; check existing coax cable condition and compatibility before reuse.
Recorder capacity
3 included cameras use 3 of the recorder’s 8 channels. 5 channels remain for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Recording storage
4TB storage is included. Recording time depends on the camera mix, bitrate and recording schedule. A reliable day estimate is unavailable for this configuration.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
The recorder
1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR
The box that saves everything and runs the app
The cameras
2× Hilook 4 MP Fixed Turret Camera
What goes on the wall
The cameras
1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
What goes on the wall
The hard drive
1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM
Where the footage is kept
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable
3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5108HS-4K/X1 + 2× HiLook THC-T240-M-R + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 3 cameras at 4MP + 5MP — sized for a house or flat. The included 4TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 3 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR; 2× Hilook 4 MP Fixed Turret Camera; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5108HS-4K/X1 + 2× HiLook THC-T240-M-R + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR
- Cameras included
- 2× Hilook 4 MP Fixed Turret Camera; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 4MP + 5MP
- Storage
- 4TB surveillance HDD — about 30 days of footage, recording all 3 cameras continuously at high quality (H.265) — the load is 2× 4MP + 1× 5MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR; 2× Hilook 4 MP Fixed Turret Camera; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
