What's in the box
Here's what comes in the box and how many you get of each. Tap any part for the full spec.
1 camera in the box. Keeps about 46 days of recording. Uses analogue cameras, so if you're reusing old coax, check it's in good condition and compatible first.
Recorder capacity
The camera in this kit takes 1 of the recorder's 4 channels. That leaves 3 spare for adding cameras later. Before you add any, check the recorder supports their resolution and has the recording bandwidth for them, and that you've got power or PoE ports free.
Recording storage
It comes with 1TB of storage. That's about 46 days of footage when it records all the time in H.265. We work that out at 1 Mbps a camera for 2MP or less, 2 Mbps between 2MP and 5MP, and 4 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.
Before installation
The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.
The recorder
1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
Records all your cameras and runs the app
The cameras
1× Hilook 3 MP Fixed Mini Bullet Camera
The part you put on the wall
The hard drive
1× Seagate Pipeline HD ST1000VM002 1TB Video Hard Drive 3.5" SATA III 6Gb/s – 5900 RPM, 64MB Cache, for DVR
Stores your recordings
The power supply

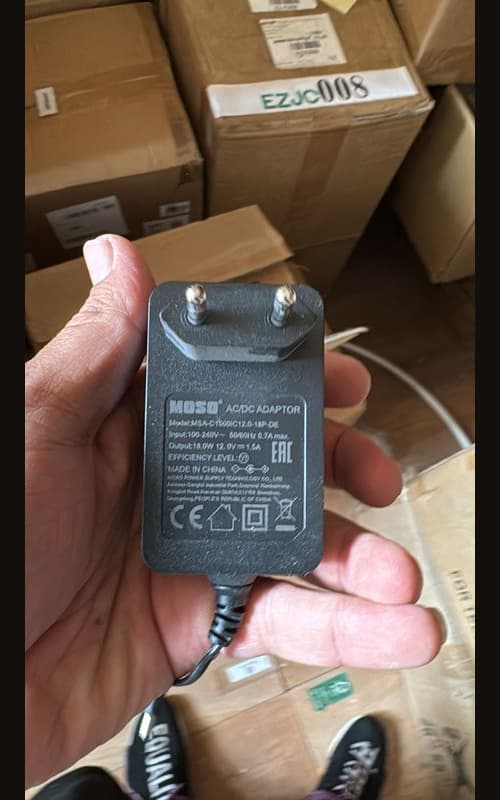

1× MOSO Power Unit 12V 1.5A
Powers the cameras from one plug
The cable
1× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Connects each camera back to the recorder
Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.
Product Description
A complete 4-channel HD-over-coax CCTV kit built on the ANNKE AN-DV4-8MP-D941BB + 1× HiLook THC-B230-R. One camera at 3MP — sized for a house or flat. The included 1TB hard drive holds about 46 days of continuous recording — the estimate assumes recording the camera continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 1× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× MOSO Power Unit 12V 1.5A. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR; 1× Hilook 3 MP Fixed Mini Bullet Camera; 1× Seagate Pipeline HD ST1000VM002 1TB Video Hard Drive 3.5" SATA III 6Gb/s – 5900 RPM, 64MB Cache, for DVR; 1× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× MOSO Power Unit 12V 1.5A.
Specifications
- System type
- Analog (HD over coax)
- Built on
- ANNKE AN-DV4-8MP-D941BB + 1× HiLook THC-B230-R
- Recorder
- 4-channel ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
- Cameras included
- 1× Hilook 3 MP Fixed Mini Bullet Camera
- Camera resolution
- 3MP
- Storage
- 1TB HDD — about 46 days of footage, recording the camera continuously at high quality (H.265)
- Cables & PSU included
- 1× MOSO Power Unit 12V 1.5A; 1× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR; 1× Hilook 3 MP Fixed Mini Bullet Camera; 1× Seagate Pipeline HD ST1000VM002 1TB Video Hard Drive 3.5" SATA III 6Gb/s – 5900 RPM, 64MB Cache, for DVR; 1× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× MOSO Power Unit 12V 1.5A
