What's in the box
Here's what comes in the box and how many you get of each. Tap any part for the full spec.
4 cameras in the box. Keeps about 17 days of recording. Uses network cameras, so check the power equipment and cables listed below.
Recorder capacity
The 4 cameras in this kit take 4 of the recorder's 4 channels. Every channel's taken, so for more cameras you'd need a recorder with more channels.
Recording storage
It comes with 3TB of storage. That's about 17 days of footage when it records all the time in H.265. We work that out at 1 Mbps a camera for 2MP or less, 2 Mbps between 2MP and 5MP, and 4 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.
Before installation
The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.
The recorder
1× Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR
Records all your cameras and runs the app
The cameras
4× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic
The part you put on the wall
The hard drive
1× 3TB Internal Hard Drive 3.5" SATA – CCTV DVR and NVR Recorder Storage
Stores your recordings
The cable
4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Connects each camera back to the recorder
Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.
Product Description

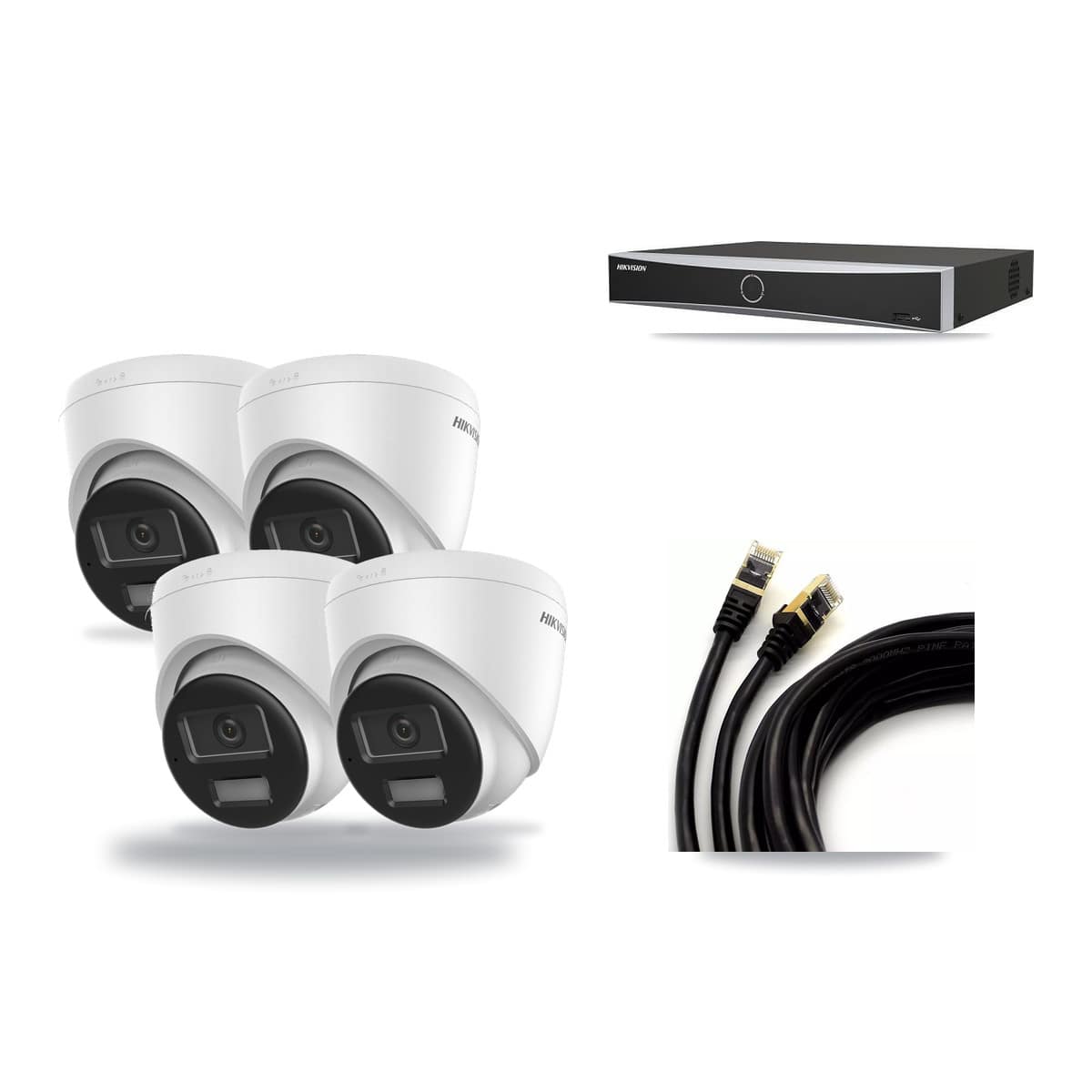

A complete 4-channel IP (PoE) CCTV kit built on the Hikvision DS-7604NXI-K1/4P + 4× Hikvision DS-2CD1383G2-LIU. 4 cameras at 4K (8MP) — sized for a house or flat. The included 3TB hard drive holds about 17 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR; 4× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic; 1× 3TB Internal Hard Drive 3.5" SATA – CCTV DVR and NVR Recorder Storage; 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7604NXI-K1/4P + 4× Hikvision DS-2CD1383G2-LIU
- Recorder
- 4-channel Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR
- Cameras included
- 4× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic
- Camera resolution
- 4K (8MP)
- Storage
- 3TB HDD — about 17 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR; 4× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic; 1× 3TB Internal Hard Drive 3.5" SATA – CCTV DVR and NVR Recorder Storage; 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
