What's in the box
Here's what comes in the box and how many you get of each. Tap any part for the full spec.
7 cameras in the box. Keeps about 61 days of recording. Uses network cameras, so check the power equipment and cables listed below.
Recorder capacity
The 7 cameras in this kit take 7 of the recorder's 8 channels. That leaves 1 spare for adding a camera later. Before you add any, check the recorder supports their resolution and has the recording bandwidth for them, and that you've got power or PoE ports free.
Recording storage
It comes with 6TB of storage. That's about 61 days of footage when it records all the time in H.265. We work that out at 1 Mbps a camera for 2MP or less, 2 Mbps between 2MP and 5MP, and 4 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.
Before installation
The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.
The recorder
1× HIKVISION HILOOK NVR-108H-D/8P 8CH PoE Network Video Recorder H.265 NVR
Records all your cameras and runs the app
The cameras
5× Hikvision DS-2CD1327G2-LUF 2MP ColorVu PoE IP Turret Camera Mic IP67
The part you put on the wall
The cameras
2× Hikvision DS-2CD2347G2-LSU/SL 4MP ColorVu Strobe Light PoE Turret Camera Black
The part you put on the wall
The hard drive
1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Stores your recordings
The cable
7× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
Connects each camera back to the recorder
Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.
Product Description

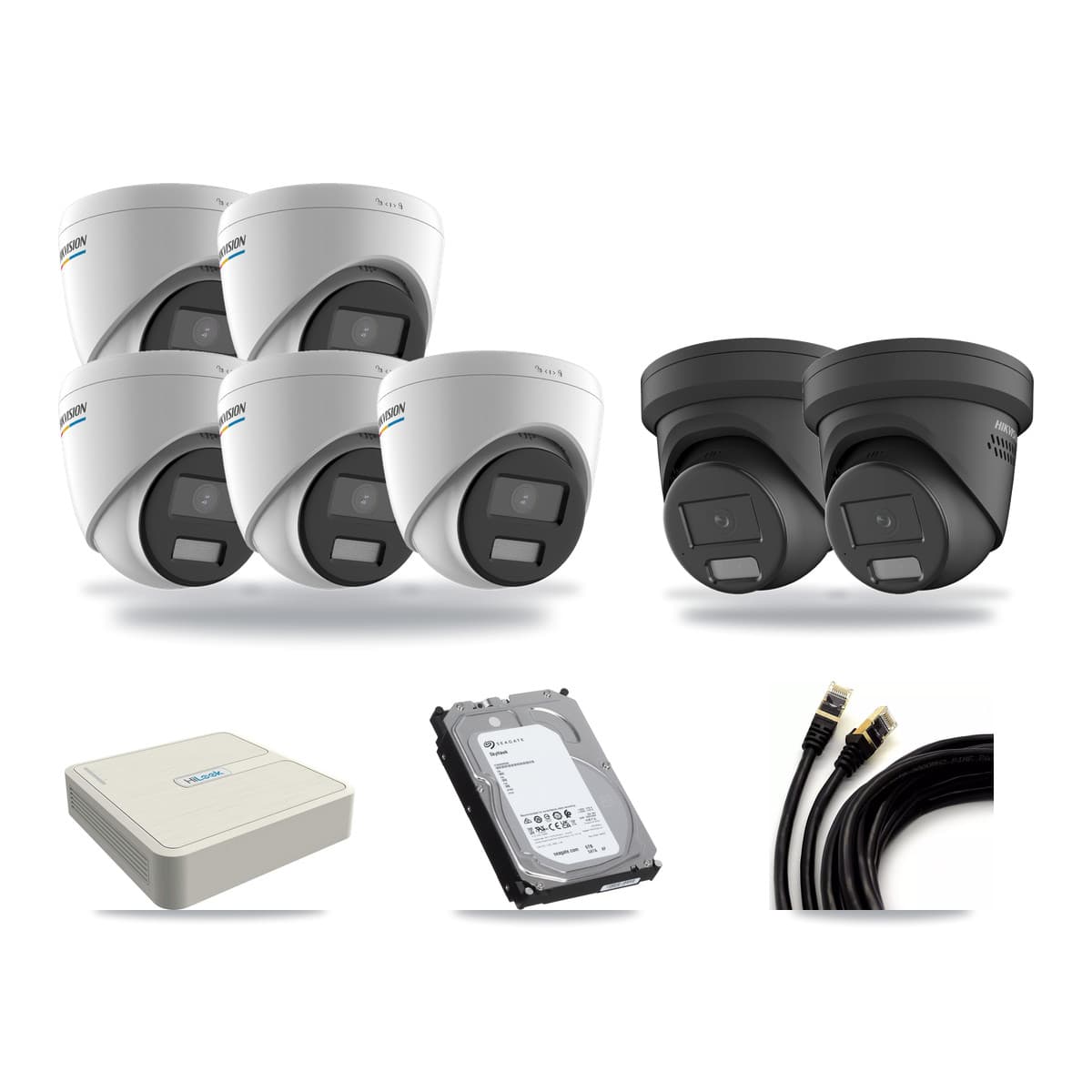

This 8-channel IP PoE CCTV kit pairs the HiLook NVR-108H-D/8P recorder with 5 × Hikvision DS-2CD1327G2-LUF turret cameras and 2 × Hikvision DS-2CD2347G2-LSU/SL-B turret cameras. The cameras record at 2MP + 4MP, with colour pictures at night (ColorVu). Recordings go to the 6TB surveillance hard drive: around 61 days of footage with all 7 cameras recording non-stop in H.265, after which the oldest clips are recorded over. Power and cables are sorted too: 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue) ×7. A good fit for a shop, office or small business. What you get: HIKVISION HILOOK NVR-108H-D/8P 8CH PoE Network Video Recorder H.265 NVR ×1, Hikvision DS-2CD1327G2-LUF 2MP ColorVu PoE IP Turret Camera Mic IP67 ×5, Hikvision DS-2CD2347G2-LSU/SL 4MP ColorVu Strobe Light PoE Turret Camera Black ×2, Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in ×1 and 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue) ×7.
Specifications
- System type
- IP (network)
- Built on
- HiLook NVR-108H-D/8P + 5× Hikvision DS-2CD1327G2-LUF + 2× Hikvision DS-2CD2347G2-LSU/SL-B
- Recorder
- 8-channel HIKVISION HILOOK NVR-108H-D/8P 8CH PoE Network Video Recorder H.265 NVR
- Cameras included
- 5× Hikvision DS-2CD1327G2-LUF 2MP ColorVu PoE IP Turret Camera Mic IP67; 2× Hikvision DS-2CD2347G2-LSU/SL 4MP ColorVu Strobe Light PoE Turret Camera Black
- Camera resolution
- 2MP + 4MP
- Storage
- 6TB surveillance HDD — about 61 days of footage, recording all 7 cameras continuously at high quality (H.265) — the load is 5× 2MP + 2× 4MP
- Cables & PSU included
- 7× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
- What's in the box
- 1× HIKVISION HILOOK NVR-108H-D/8P 8CH PoE Network Video Recorder H.265 NVR; 5× Hikvision DS-2CD1327G2-LUF 2MP ColorVu PoE IP Turret Camera Mic IP67; 2× Hikvision DS-2CD2347G2-LSU/SL 4MP ColorVu Strobe Light PoE Turret Camera Black; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 7× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
