What's in the box
Here's what comes in the box and how many you get of each. Tap any part for the full spec.
3 cameras in the box. Keeps about 30 days of recording. Uses analogue cameras, so if you're reusing old coax, check it's in good condition and compatible first.
Recorder capacity
The 3 cameras in this kit take 3 of the recorder's 8 channels. That leaves 5 spare for adding cameras later. Before you add any, check the recorder supports their resolution and has the recording bandwidth for them, and that you've got power or PoE ports free.
Recording storage
It comes with 4TB of storage. That's about 30 days of footage when it records all the time in H.265. We work that out at 2 Mbps a camera for 2MP or less, 4 Mbps between 2MP and 5MP, and 8 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.
Before installation
The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.
The recorder
1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
Records all your cameras and runs the app
The cameras
2× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera
The part you put on the wall
The cameras
1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
The part you put on the wall
The hard drive
1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM
Stores your recordings
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Powers the cameras from one plug
The cable
3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Connects each camera back to the recorder
Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.
Product Description

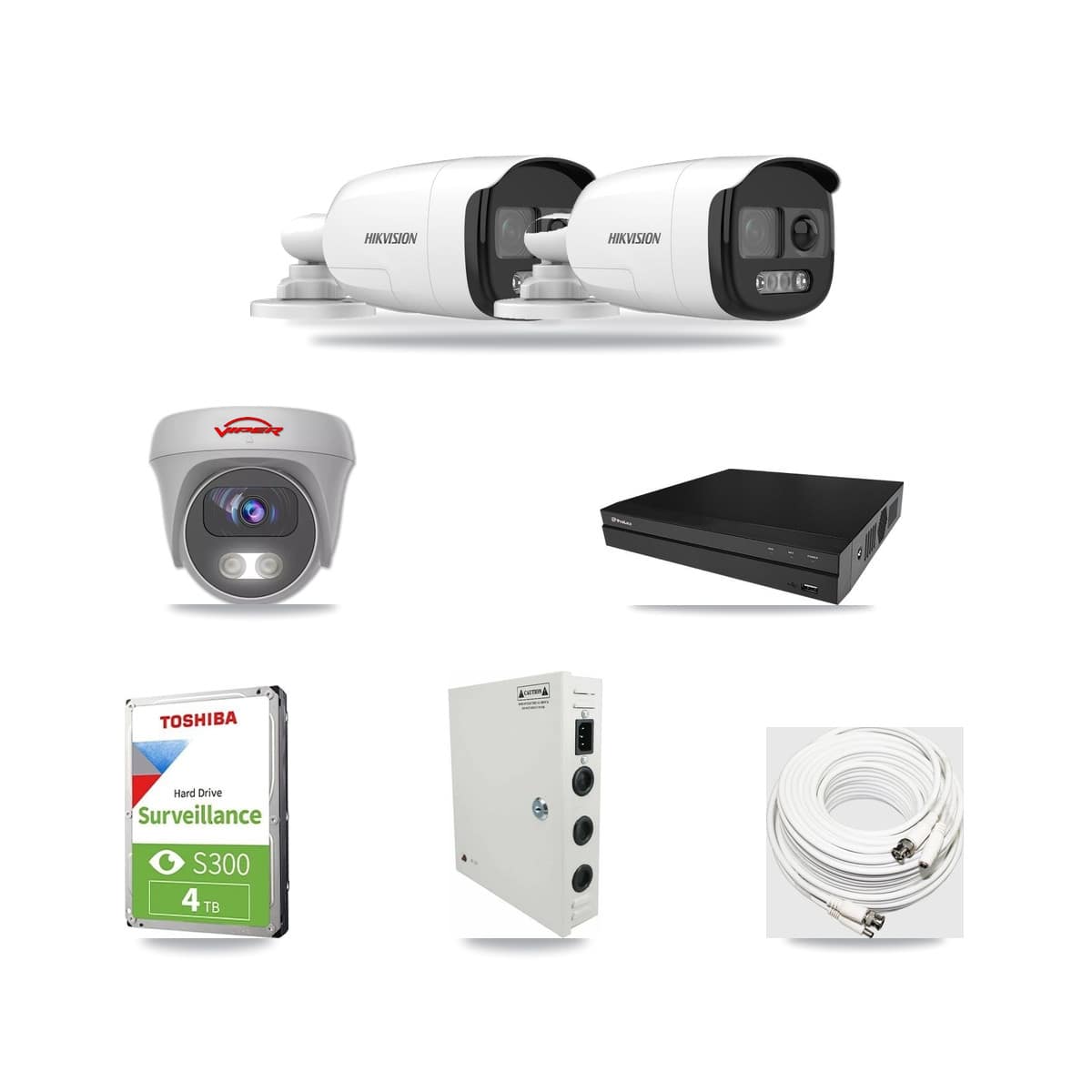

A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5208AN-4KL-X-8P + 2× Hikvision DS-2CE12KF3T-PIRXO + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 3 cameras at 5MP — sized for a house or flat. The included 4TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 3 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 2× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5208AN-4KL-X-8P + 2× Hikvision DS-2CE12KF3T-PIRXO + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
- Cameras included
- 2× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 4TB surveillance HDD — about 30 days of footage, recording all 3 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 2× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 3× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
