What's in the box
Here's what comes in the box and how many you get of each. Tap any part for the full spec.
30 cameras in the box. Keeps about 61 days of recording. Uses analogue cameras, so if you're reusing old coax, check it's in good condition and compatible first.
Recorder capacity
The 30 cameras in this kit take 30 of the recorder's 32 channels. That leaves 2 spare for adding cameras later. Before you add any, check the recorder supports their resolution and has the recording bandwidth for them, and that you've got power or PoE ports free.
Recording storage
It comes with 40TB of storage. That's about 61 days of footage when it records all the time in H.265. We work that out at 1 Mbps a camera for 2MP or less, 2 Mbps between 2MP and 5MP, and 4 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.
Before installation
The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.
The recorder
1× Hikvision 32-ch 5mp 1.5U H.265 DVR
Records all your cameras and runs the app
The cameras
29× Hilook 4 MP Fixed Mini Bullet Camera
The part you put on the wall
The cameras
1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
The part you put on the wall
The hard drive
4× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Stores your recordings
The power supply
2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Powers the cameras from one plug
The cable
30× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Connects each camera back to the recorder
Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.
Product Description

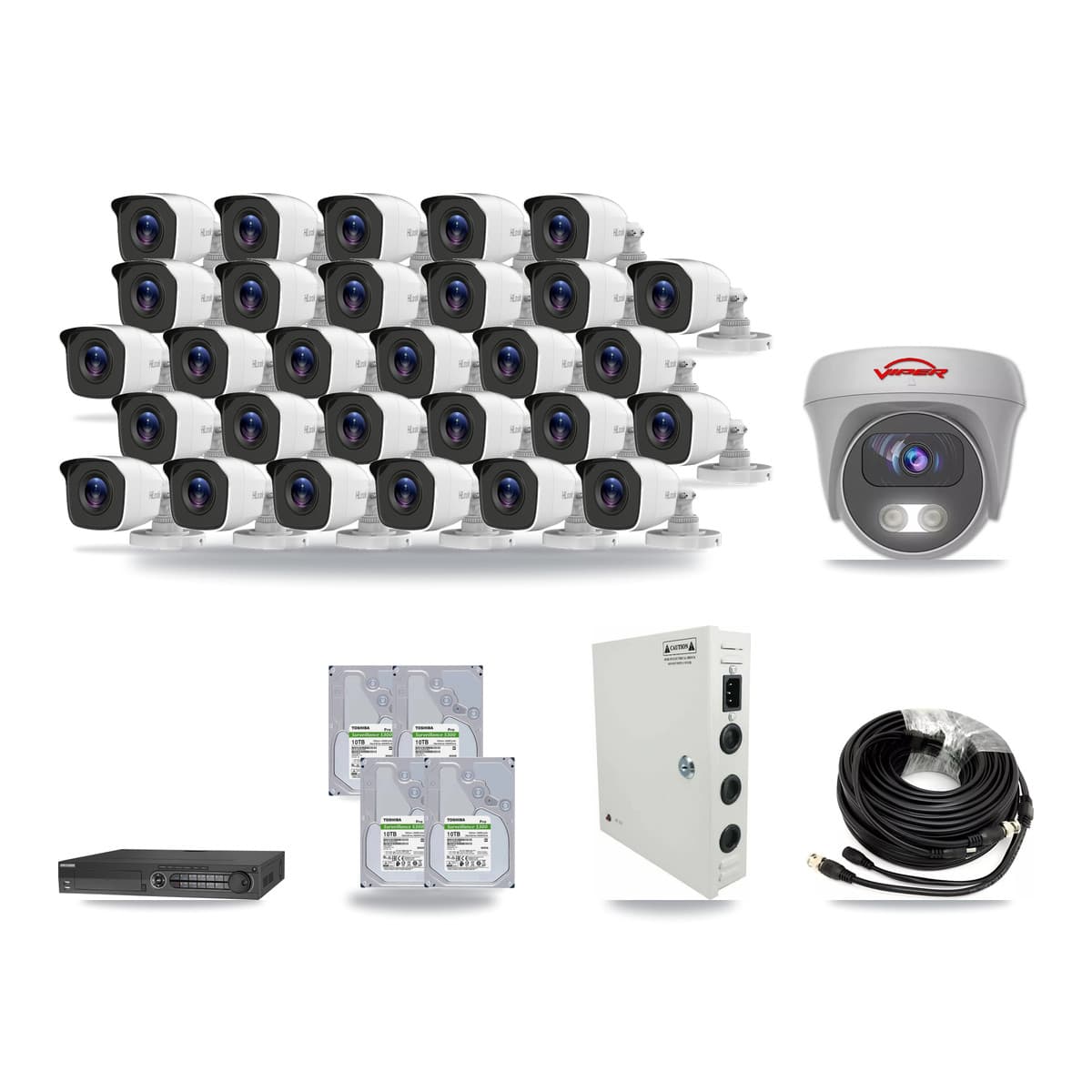

A complete 32-channel HD-over-coax CCTV kit built on the Hikvision DS-7332HQHI-K4 + 29× HiLook THC-B140-R + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 30 cameras at 4MP + 5MP — sized for a commercial site. The included 4× 10TB surveillance hard drives (40TB in total) hold about 61 days of continuous recording — the estimate assumes recording all 30 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 30× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 5mp 1.5U H.265 DVR; 29× Hilook 4 MP Fixed Mini Bullet Camera; 1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 4× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 30× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision DS-7332HQHI-K4 + 29× HiLook THC-B140-R + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 32-channel Hikvision 32-ch 5mp 1.5U H.265 DVR
- Cameras included
- 29× Hilook 4 MP Fixed Mini Bullet Camera; 1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 4MP + 5MP
- Storage
- 4× 10TB (40TB total) surveillance HDD — about 61 days of footage, recording all 30 cameras continuously at high quality (H.265) — the load is 29× 4MP + 1× 5MP
- Cables & PSU included
- 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 30× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 5mp 1.5U H.265 DVR; 29× Hilook 4 MP Fixed Mini Bullet Camera; 1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 4× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 30× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
