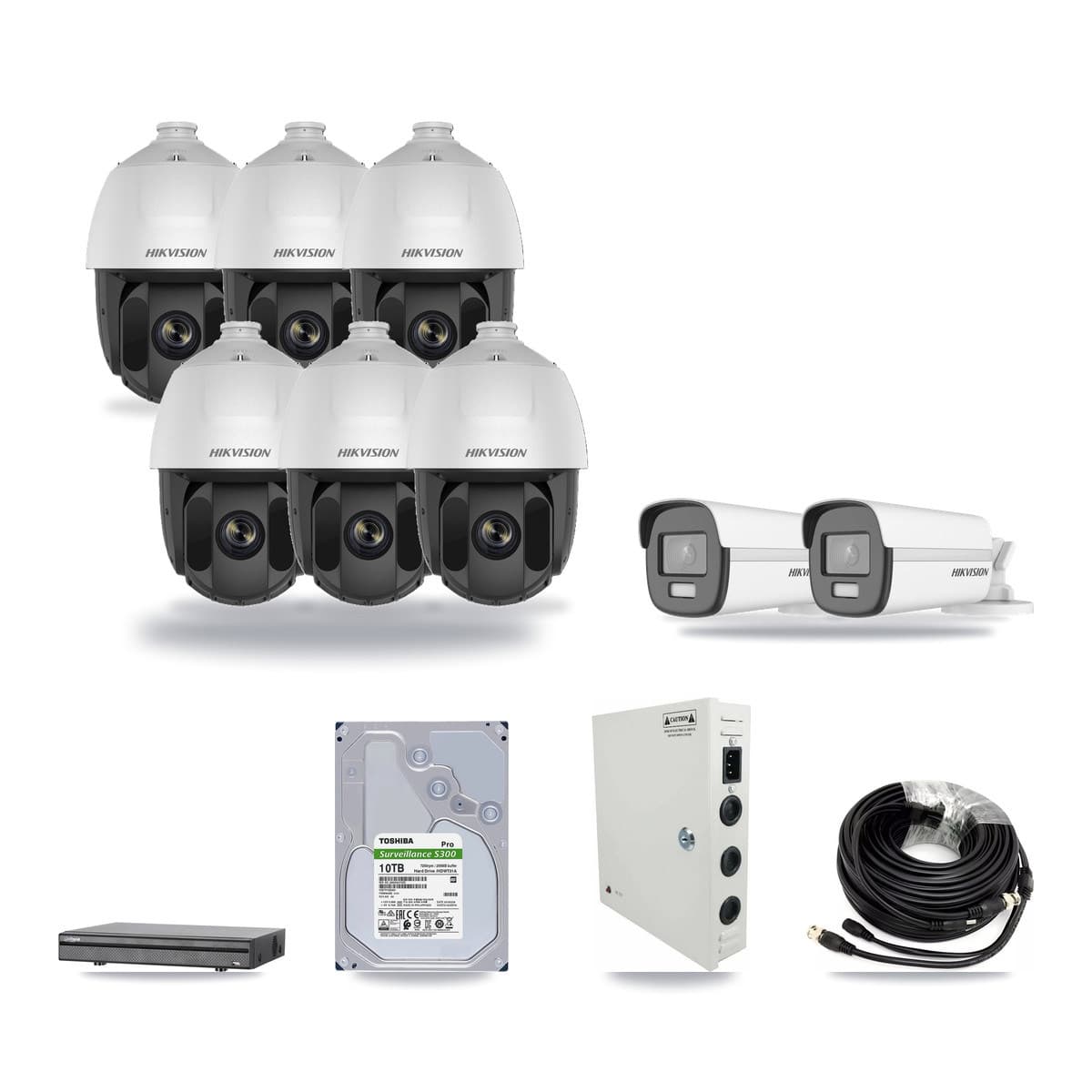

Hikvision & Dahua 8-Channel 2MP – 4K CCTV Kit — 6 2MP PTZ + 2 4K Bullet Cameras + 10TB Recording - Image 1
1 / 7
CCTV Kits›Turbo HD Kits›2MP Kits

Hikvision & Dahua 8-Channel 2MP – 4K CCTV Kit — 6 2MP PTZ + 2 4K Bullet Cameras + 10TB Recording

Dahua DH-XVR5108H-4KL-X-8P + 6× Hikvision DS-2AE5225TI-A-E + 2× Hikvision DS-2CE12UF3T-E, plus a 10TB surveillance hard drive for around 66 days of recording.

.inc. VAT

Available for backorder

Add it to your basket — you'll see how long it takes to arrange at checkout

Quantity:

Available for backorder. You can still order it: pop it in your basket and check out as usual. Before you pay, we'll show you how long it'll take to arrange. Prefer a quote? Ask for one and we'll sort out delivery with you.

UK delivery £5.99Free when you spend £100.00 or more (inc. VAT)
Same-day dispatchOrder before 4pm on a weekday
Secure checkout256-bit SSL encryption
14 days to change your mindNo reason needed

What's in the box

Here's what comes in the box and how many you get of each. Tap any part for the full spec.

8 cameras in the box. Keeps about 66 days of recording. Uses analogue cameras, so if you're reusing old coax, check it's in good condition and compatible first.

Recorder capacity

The 8 cameras in this kit take 8 of the recorder's 8 channels. Every channel's taken, so for more cameras you'd need a recorder with more channels.

Recording storage

It comes with 10TB of storage. That's about 66 days of footage when it records all the time in H.265. We work that out at 1 Mbps a camera for 2MP or less, 2 Mbps between 2MP and 5MP, and 4 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.

Before installation

The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.

Analogue HD system8-channel recorder8 cameras10TB storage included

Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.

Product Description

This 8-channel HD analogue CCTV kit pairs the Dahua DH-XVR5108H-4KL-X-8P recorder with 6 × Hikvision DS-2AE5225TI-A-E PTZ cameras and 2 × Hikvision DS-2CE12UF3T-E bullet cameras. The cameras record at 2MP + 4K (8MP). Recordings go to the 10TB surveillance hard drive: around 66 days of footage with all 8 cameras recording non-stop in H.265, after which the oldest clips are recorded over. Power and cables are sorted too: RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR ×8 and 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit ×1. Nothing else to buy: recorder, cameras, drive, power and cabling all come in the box. A good fit for a shop, office or small business. What you get: Dahua XVR5108H-4KL-X-8P 8 Channel 4K Penta-brid PoC Hybrid DVR ×1, Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera ×6, Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera ×2, Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM ×1, RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR ×8 and 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit ×1. Watch live or play back on your phone with the free DMSS app for iPhone and Android.

Specifications

System type
Analog (HD over coax)
Built on
Dahua DH-XVR5108H-4KL-X-8P + 6× Hikvision DS-2AE5225TI-A-E + 2× Hikvision DS-2CE12UF3T-E
Recorder
8-channel Dahua XVR5108H-4KL-X-8P 8 Channel 4K Penta-brid PoC Hybrid DVR
Cameras included
6× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 2× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera
Camera resolution
2MP + 4K (8MP)
Storage
10TB surveillance HDD — about 66 days of footage, recording all 8 cameras continuously at high quality (H.265) — the load is 6× 2MP + 2× 8MP
Cables & PSU included
1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
What you need to add
Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
Mobile app
Free DMSS app (iOS / Android) for live view and playback
What's in the box
1× Dahua XVR5108H-4KL-X-8P 8 Channel 4K Penta-brid PoC Hybrid DVR; 6× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 2× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit

What customers say

Nobody has reviewed Hikvision & Dahua 8-Channel 2MP – 4K CCTV Kit — 6 2MP PTZ + 2 4K Bullet Cameras + 10TB Recording yet. Only people who've bought it from us can leave a review — we ask once the order's been dispatched, so every rating here is from a verified purchase.
