What's in the box
Here's what comes in the box and how many you get of each. Tap any part for the full spec.
3 cameras in the box. Keeps about 61 days of recording. Uses network cameras, so check the power equipment and cables listed below.
Recorder capacity
The 3 cameras in this kit take 3 of the recorder's 4 channels. That leaves 1 spare for adding a camera later. Before you add any, check the recorder supports their resolution and has the recording bandwidth for them, and that you've got power or PoE ports free.
Recording storage
It comes with 4TB of storage. That's about 61 days of footage when it records all the time in H.265. We work that out at 1 Mbps a camera for 2MP or less, 2 Mbps between 2MP and 5MP, and 4 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.
Before installation
The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.
The recorder
1× Prolux PXN-2104HS-4P/4K 4 Channel 8MP 4K PoE IP CCTV NVR
Records all your cameras and runs the app
The cameras
3× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
The part you put on the wall
The hard drive
1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM
Stores your recordings
The cable
3× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Connects each camera back to the recorder
Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.
Product Description

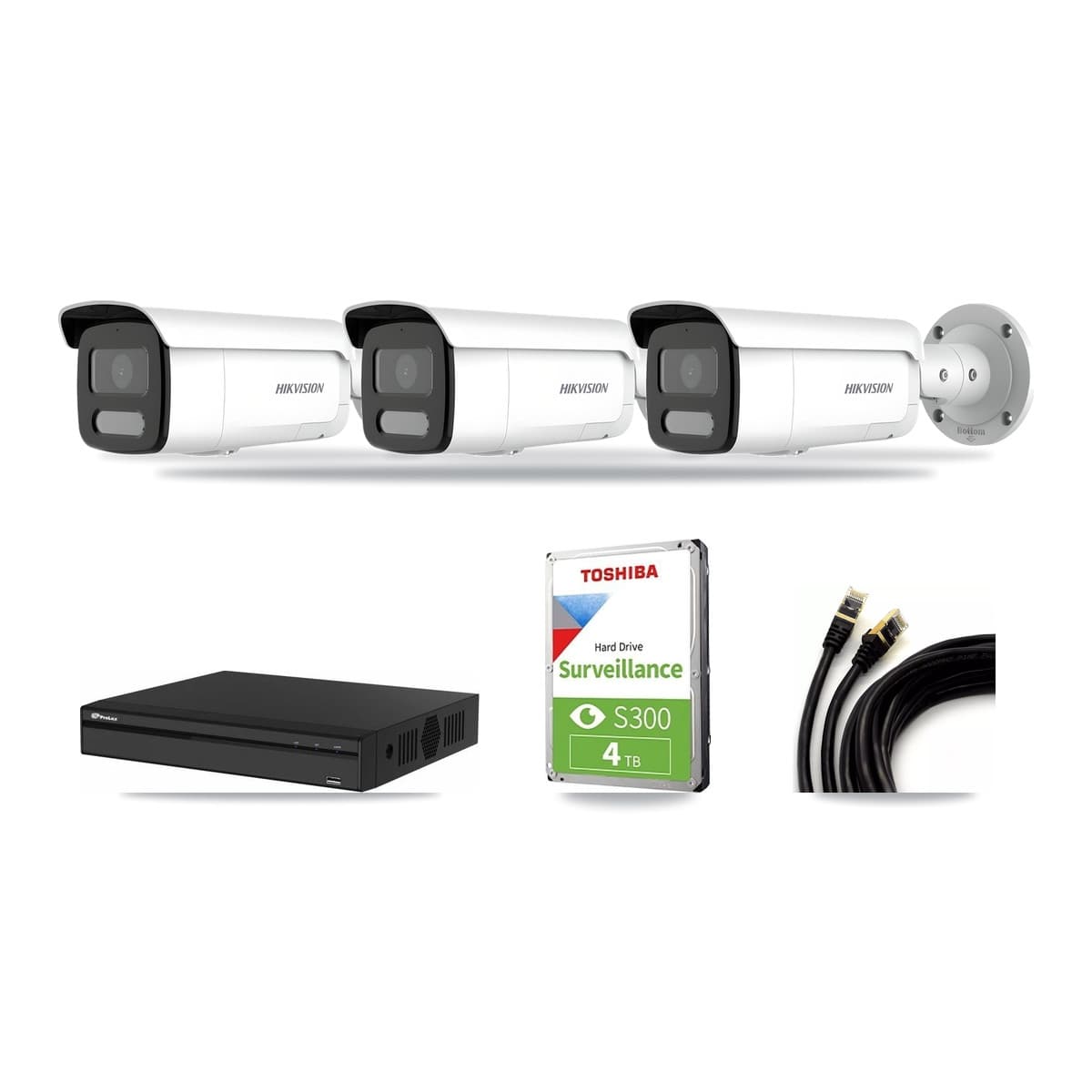

This 4-channel IP PoE CCTV kit pairs the Prolux PXN-2104HS-4P-4K recorder with 3 × Hikvision DS-2CD2T47G2H-LISU/SL bullet cameras. Every camera records at 4MP, with colour pictures at night (ColorVu). Recordings go to the 4TB surveillance hard drive: around 61 days of footage with all 3 cameras recording non-stop in H.265, after which the oldest clips are recorded over. Power and cables are sorted too: Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable ×3. A good fit for a home or flat. What you get: Prolux PXN-2104HS-4P/4K 4 Channel 8MP 4K PoE IP CCTV NVR ×1, Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera ×3, Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM ×1 and Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable ×3.
Specifications
- System type
- IP (network)
- Built on
- Prolux PXN-2104HS-4P-4K + 3× Hikvision DS-2CD2T47G2H-LISU/SL
- Recorder
- 4-channel Prolux PXN-2104HS-4P/4K 4 Channel 8MP 4K PoE IP CCTV NVR
- Cameras included
- 3× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
- Camera resolution
- 4MP
- Storage
- 4TB surveillance HDD — about 61 days of footage, recording all 3 cameras continuously at high quality (H.265)
- Cables & PSU included
- 3× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- What's in the box
- 1× Prolux PXN-2104HS-4P/4K 4 Channel 8MP 4K PoE IP CCTV NVR; 3× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 3× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
