Product Description

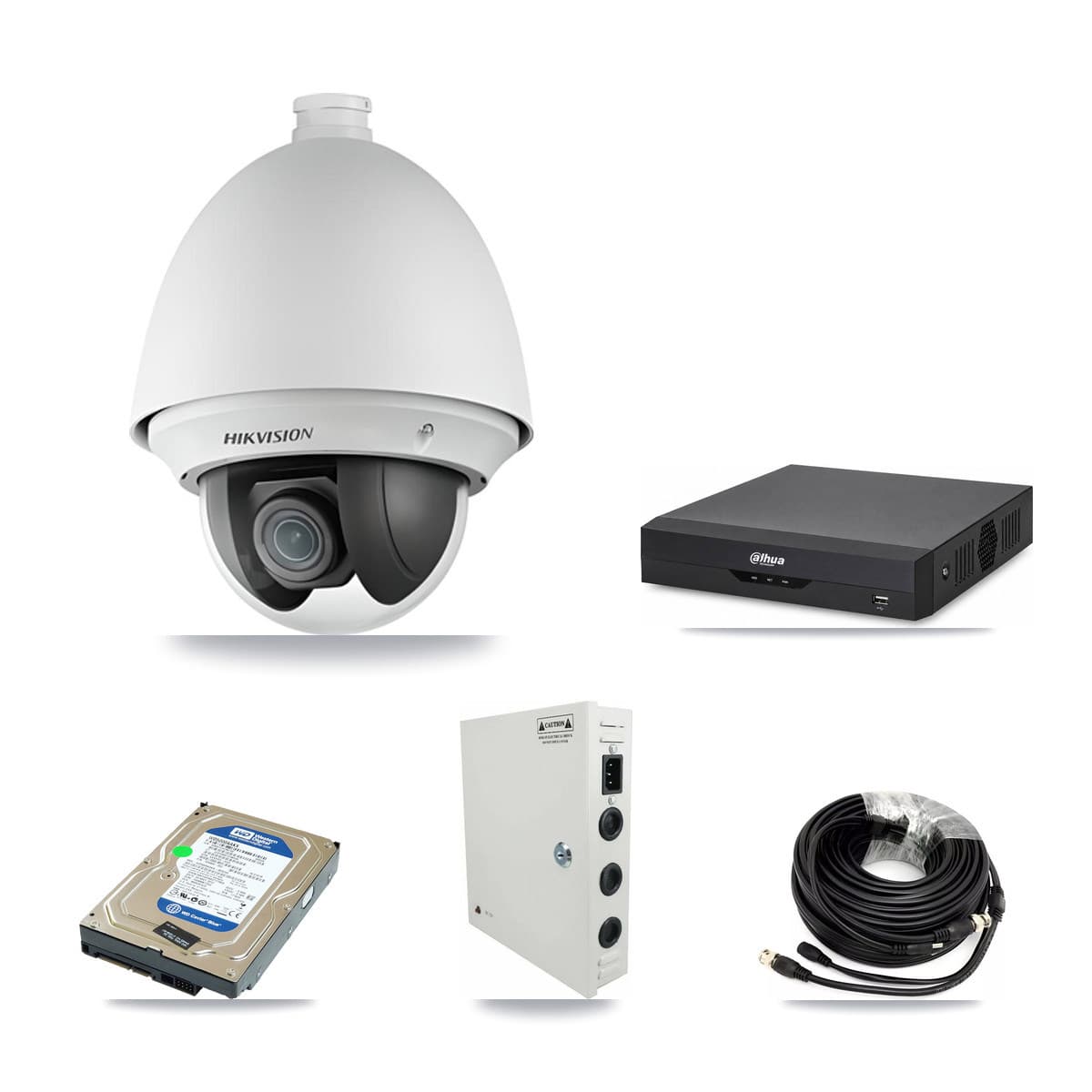

The DS-2AE4225T-A is a 2 MP HD-TVI speed dome with 25x optical zoom, built to watch large sites and pick out detail at distance. It's an analogue camera (HD-TVI, meaning high-definition video sent over standard coaxial cable), so it's a natural fit for upgrading an existing analogue system without rewiring for network cable.
What it actually does
- 25x optical zoom (4.8mm–120mm focal range) — zoom in on a distant gate, number plate or doorway without losing detail, useful for car parks, warehouses and open perimeters.
- Pan/tilt control — the dome physically moves to cover multiple zones from one camera, operated remotely through a compatible Hikvision HD-TVI DVR.
- 120 dB WDR (wide dynamic range) — keeps footage usable when there's strong backlighting, such as a subject against a bright sky or window.
- Powered-by-DarkFighter low-light imaging plus Smart IR — colour by day, clear monochrome by night, with infrared output that avoids blowing out close subjects.
- IP66-rated housing — sealed against rain and dust for outdoor mounting.
Before you buy
This is a PTZ (pan-tilt-zoom) analogue camera, not IP — it needs a compatible Hikvision HD-TVI DVR to unlock remote pan/tilt/zoom control, not just any recorder. Check your existing DVR supports HD-TVI PTZ before ordering, and run a proper power supply, since IR illumination draws more current at night and a weak or long cable run can cause flickering or dropout.
Specifications
- FOV
- Horizontal field of view: 57.6° to 2.5° (wide to tele),Vertical field of view: 34.4° to 1.4° (wide to tele),Diagonal field of view: 64.5° to 2.9° (wide to tele)
- Zoom Speed
- Approx. 3.6 s (optical, wide to tele)
- Working Distance
- 10 mm to 1500 mm (wide to tele)
- Aperture Range
- F 1.6 to F 3.5
- Focal Length
- 4.8 mm to 120 mm, 25× Optical
- Max Resolution
- 1920 × 1080
- Frame Rate
- 50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
- Regional Focus
- Yes
- Image Sensor
- 1/2.8" progressive scan CMOS
- Day & Night
- IR cut filter
- WDR
- ≥ 120 dB
- Movement Range (Pan)
- 360° endless
- Pan Speed
- Pan manual speed: 0.1° to 100°/s,Pan preset speed: 100°/s
- Movement Range (Tilt)
- -5° to 90° (auto flip)
- Tilt Speed
- Tilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
- Proportional Zoom
- Rotation speed can be adjusted automatically according to zoom multiples
- Dimensions
- Ø 180 × 239.5 mm (Ø 7.1" × 9.4")
- Protection Level
- IP66 standard (outdoor dome),TVS 4,000 V lightning protection, surge protection and voltage transient protection
- Operating Temperature
- -30° C to 65° C (-22° F to 149° F)
- Brackets
- DS-1667ZJ, DS-1663ZJ, DS-1662ZJ, DS-1604ZJ-BOX-CORNER, DS-1618ZJ
Technical Specifications
Frequently Asked Questions
Does this camera work with any DVR?
It needs a compatible Hikvision HD-TVI DVR to get full pan/tilt/zoom control, so check your recorder supports HD-TVI PTZ before buying.
Is this an IP camera?
No — it's an analogue HD-TVI camera that sends Full HD 1080p video over standard coaxial cable, not network cable.
Can it be mounted outdoors?
Yes, the housing is IP66-rated, meaning it's sealed against dust and water ingress.
Why might the image flicker or disappear at night?
This is usually a power issue — IR illumination draws more current at night, so a weak power supply or a long, thin cable run can cause voltage drop and flickering.
