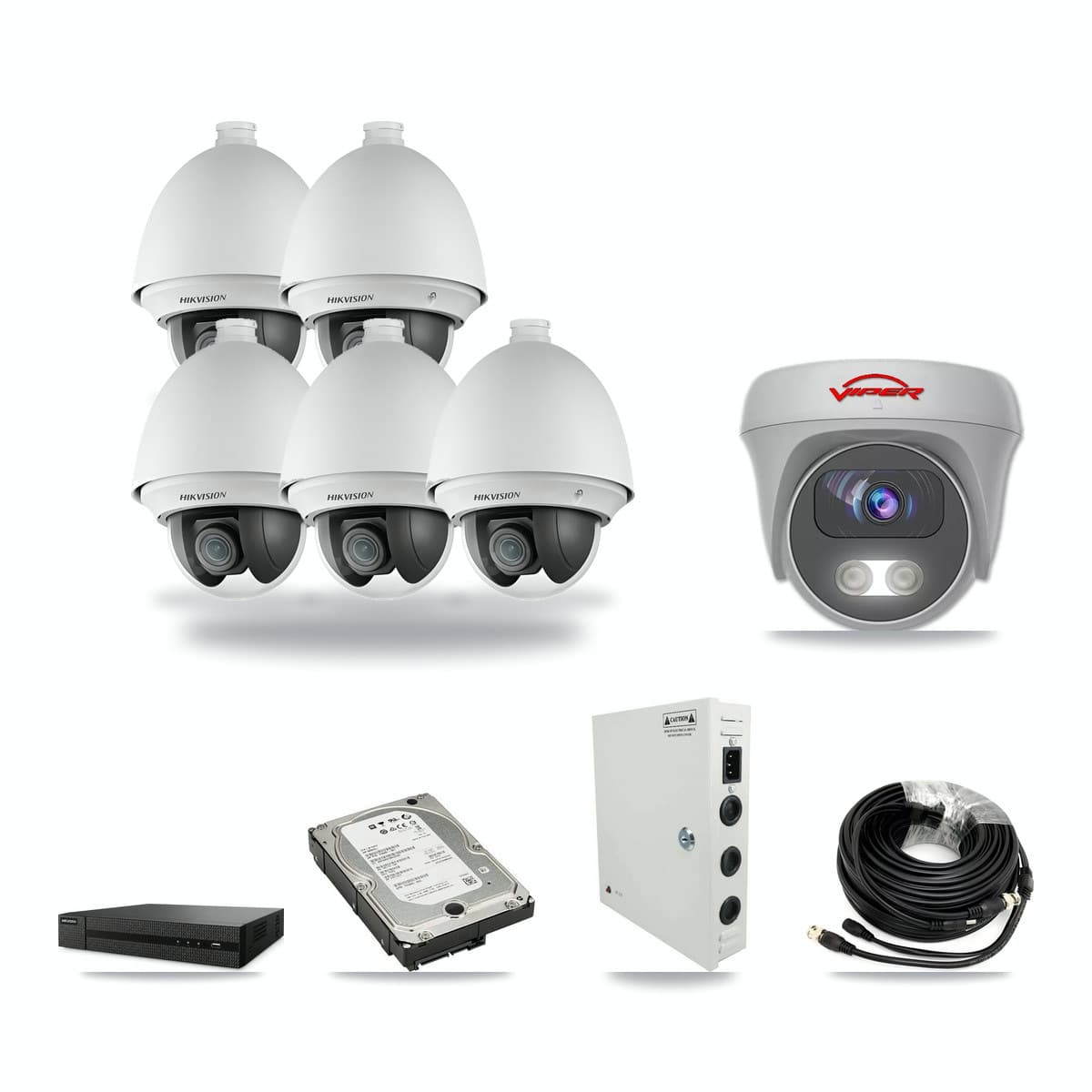

8-Channel 2MP – 5MP CCTV Kit — 5 Hikvision 2MP PTZ + 1 Viper 5MP Cameras + 5TB Recording - Image 1
1 / 7
CCTV Kits›Turbo HD Kits›2MP Kits

8-Channel 2MP – 5MP CCTV Kit — 5 Hikvision 2MP PTZ + 1 Viper 5MP Cameras + 5TB Recording

DVR-8CH-HYL8MP + 5× Hikvision DS-2AE4225T-A + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM, plus a 5TB hard drive for around 66 days of recording.

.inc. VAT

Available for backorder

Add it to your basket — you'll see how long it takes to arrange at checkout

Quantity:

Available for backorder. You can still order it: pop it in your basket and check out as usual. Before you pay, we'll show you how long it'll take to arrange. Prefer a quote? Ask for one and we'll sort out delivery with you.

UK delivery £5.99Free when you spend £100.00 or more (inc. VAT)
Same-day dispatchOrder before 4pm on a weekday
Secure checkout256-bit SSL encryption
14 days to change your mindNo reason needed

What's in the box

Here's what comes in the box and how many you get of each. Tap any part for the full spec.

6 cameras in the box. Keeps about 66 days of recording. Uses analogue cameras, so if you're reusing old coax, check it's in good condition and compatible first.

Recorder capacity

The 6 cameras in this kit take 6 of the recorder's 8 channels. That leaves 2 spare for adding cameras later. Before you add any, check the recorder supports their resolution and has the recording bandwidth for them, and that you've got power or PoE ports free.

Recording storage

It comes with 5TB of storage. That's about 66 days of footage when it records all the time in H.265. We work that out at 1 Mbps a camera for 2MP or less, 2 Mbps between 2MP and 5MP, and 4 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.

Before installation

The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.

Analogue HD system8-channel recorder6 cameras5TB storage included

Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.

Product Description

This 8-channel HD analogue CCTV kit pairs the DVR-8CH-HYL8MP recorder with 5 × Hikvision DS-2AE4225T-A PTZ cameras and 1 × Viper VIPER-5MP-3K-AOC-WHITE-2.8MM camera. The cameras record at 2MP + 5MP. Recordings go to the 5TB hard drive: around 66 days of footage with all 6 cameras recording non-stop in H.265, after which the oldest clips are recorded over. Power and cables are sorted too: RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR ×6 and 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit ×1. Nothing else to buy: recorder, cameras, drive, power and cabling all come in the box. A good fit for a shop, office or small business. What you get: DVR-8CH-HYL8MP 8 Channel 8MP Hybrid DVR H.265 HIK-Connect ×1, Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome ×5, VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV ×1, Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954 ×1, RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR ×6 and 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit ×1.

Specifications

System type
Analog (HD over coax)
Built on
DVR-8CH-HYL8MP + 5× Hikvision DS-2AE4225T-A + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
Recorder
8-channel DVR-8CH-HYL8MP 8 Channel 8MP Hybrid DVR H.265 HIK-Connect
Cameras included
5× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
Camera resolution
2MP + 5MP
Storage
5TB HDD — about 66 days of footage, recording all 6 cameras continuously at high quality (H.265) — the load is 5× 2MP + 1× 5MP
Cables & PSU included
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
What you need to add
Nothing — recorder, cameras, hard drive, power and cabling are all included
What's in the box
1× DVR-8CH-HYL8MP 8 Channel 8MP Hybrid DVR H.265 HIK-Connect; 5× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
