What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
7 cameras included, keeps about 28 days of footage, uses analogue cameras; check existing coax cable condition and compatibility before reuse.
Recorder capacity
7 included cameras use 7 of the recorder’s 8 channels. 1 channel remains for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Recording storage
16TB storage is included. Estimated recording time: about 28 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
The recorder
1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
The box that saves everything and runs the app
The cameras
6× Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The cameras
1× Hilook 3 MP Fixed Mini Bullet Camera
What goes on the wall
The hard drive

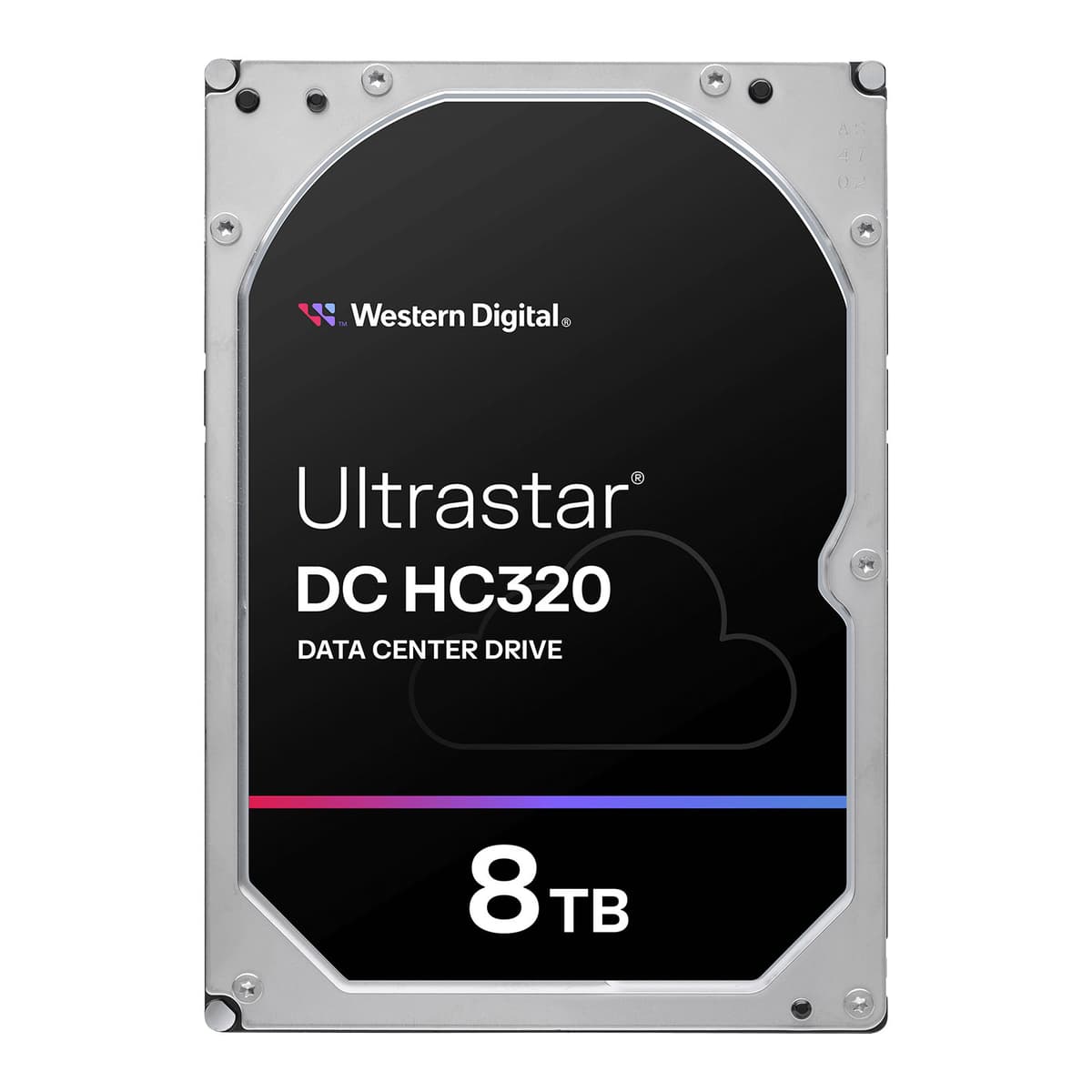

2× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive
Where the footage is kept
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable
7× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description

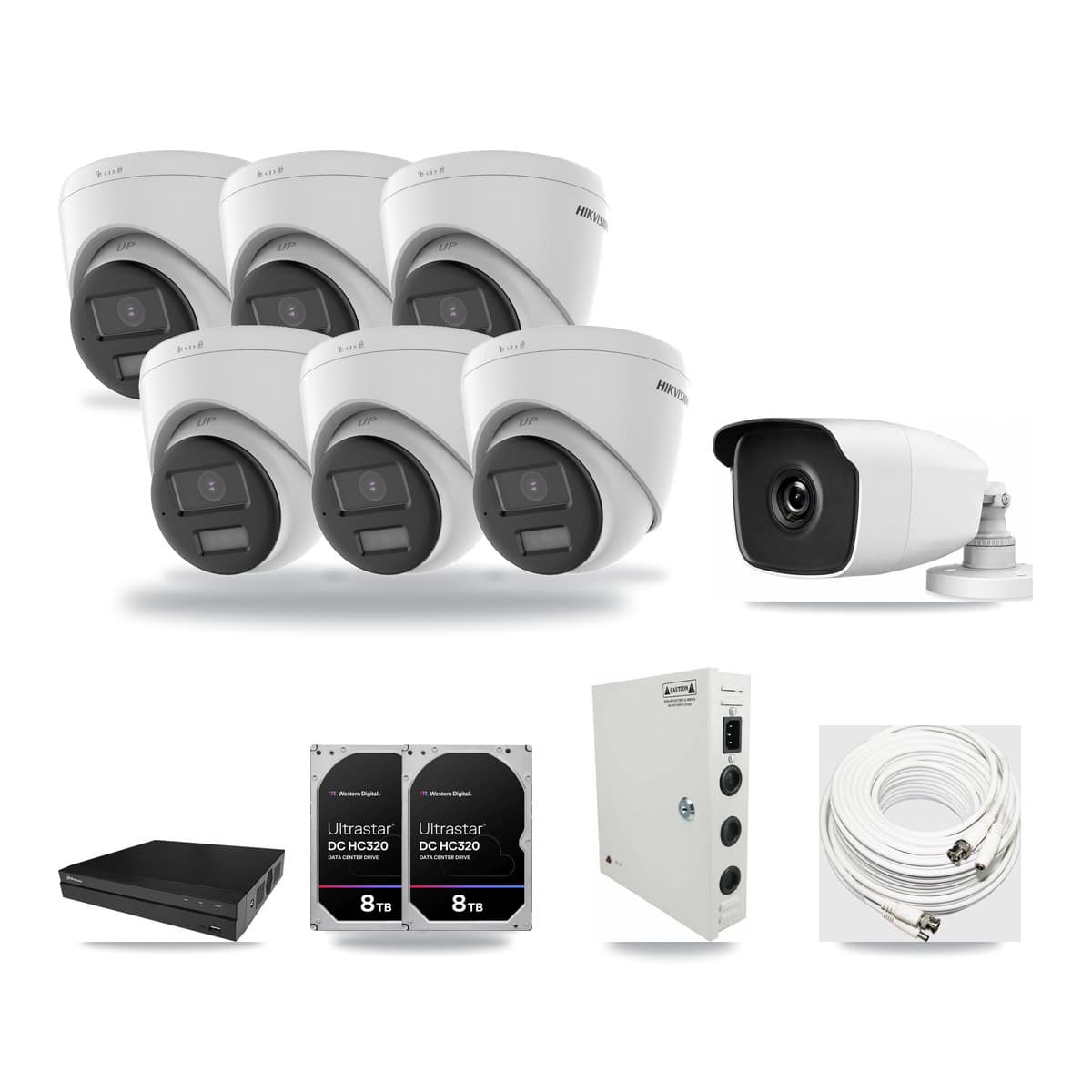

A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5208AN-4KL-X-8P + 6× Hikvision DS-2CE78U0T-LPTS + 1× HiLook THC-B230-R. 7 cameras at 3MP + 4K (8MP) — sized for a shop or small office. The included 2× 8TB hard drives (16TB in total) hold about 28 days of continuous recording — the estimate assumes recording all 7 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 7× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 6× Hikvision 4K Two Way Audio Fixed Turret; 1× Hilook 3 MP Fixed Mini Bullet Camera; 2× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 7× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5208AN-4KL-X-8P + 6× Hikvision DS-2CE78U0T-LPTS + 1× HiLook THC-B230-R
- Recorder
- 8-channel ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
- Cameras included
- 6× Hikvision 4K Two Way Audio Fixed Turret; 1× Hilook 3 MP Fixed Mini Bullet Camera
- Camera resolution
- 3MP + 4K (8MP)
- Storage
- 2× 8TB (16TB total) HDD — about 28 days of footage, recording all 7 cameras continuously at high quality (H.265) — the load is 6× 8MP + 1× 3MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 7× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 6× Hikvision 4K Two Way Audio Fixed Turret; 1× Hilook 3 MP Fixed Mini Bullet Camera; 2× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 7× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
