Product Description

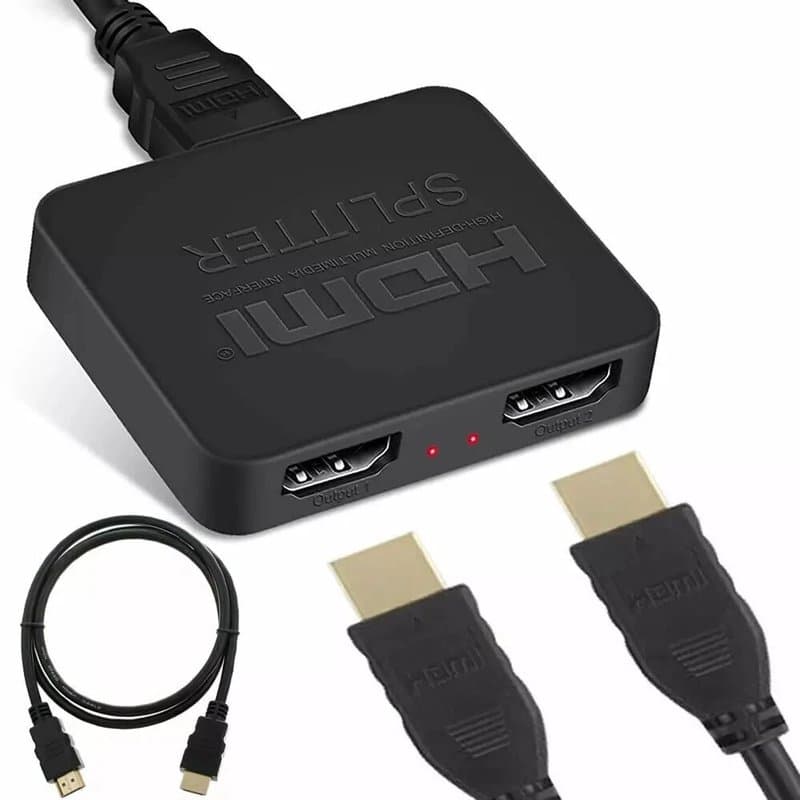

The 2 Way HDMI Splitter 4K UHD HDMI 1x2 Distribution Amplifier (SKU HDMI-SPLITTER-2WAY-4K, also listed as DZ000059) takes one HDMI-compatible signal and sends the same picture to two screens at once. It is described for shops, shopping malls, conference rooms, training rooms, showrooms and home theatres.
Read the "4K" with care
The name says 4K UHD, but the unit is HDMI-compatible version 1.4a and its ceiling is 1920x1080 at 60Hz. That is Full HD. Check that your source and both screens are working at 1080p/60Hz or below before you buy.
What to check first
- Cable lengths: input up to 15 metres, output up to 20 metres, on AWG26 HDMI-compatible cable (AWG26 is a cable-thickness rating).
- Power: it runs from the supplied USB power cable and draws a maximum of 350mA, so it needs a USB power point within reach.
- Size: 62 x 51 x 11mm.
- Conditions: operating temperature -15 to +55, humidity 5 to 90%RH, no condensation.
What passes through
- Signal retiming, which tidies up the signal timing before it goes out again
- CEC, which lets connected devices send each other control commands
- Full 3D, 24bit colour, deep colour at 30bit and 36bit, and xvYCC
- Blu-ray at 24/50/60fs and HD-DVD sources
- Audio: DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD and HD (HBR)
- Maximum bandwidth 225MHz, maximum baud rate 2.25Gbps
- Input/output signal levels: TMDS 0.5~1.5V p-p, DDC 5V p-p (p-p means peak-to-peak)
In the box: the splitter and one USB power cable.
Specifications
- Product Type
- 2-Way HDMI Splitter
- HDMI Inputs
- 1
- HDMI Outputs
- 2
- Maximum Resolution
- 4K, as indicated by the model name
Technical Specifications
Frequently Asked Questions
Does this splitter output 4K?
No. Despite 4K UHD in the name, it is HDMI-compatible version 1.4a and supports up to 1920x1080 at 60Hz.
How long can the HDMI cables be?
Up to 15 metres on the input side and up to 20 metres on the output side, using AWG26 HDMI-compatible cable.
How is it powered?
Through the supplied USB power cable. Its maximum working current is 350mA.
Does it support CEC and surround audio formats?
Yes. It supports CEC, plus DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD and HD (HBR) audio.
