What's in the box
Here's what comes in the box and how many you get of each. Tap any part for the full spec.
8 cameras in the box. Keeps about 57 days of recording. Uses network cameras, so check the power equipment and cables listed below.
Recorder capacity
The 8 cameras in this kit take 8 of the recorder's 16 channels. That leaves 8 spare for adding cameras later. Before you add any, check the recorder supports their resolution and has the recording bandwidth for them, and that you've got power or PoE ports free.
Recording storage
It comes with 20TB of storage. That's about 57 days of footage when it records all the time in H.265. We work that out at 1 Mbps a camera for 2MP or less, 2 Mbps between 2MP and 5MP, and 4 Mbps for anything bigger — added up when the cameras are different models. What you'll really get depends on your settings, how busy the scene is and how much of the storage is usable — and if you only record on motion, it depends on how much movement there is.
Before installation
The box list shows which cables, power supplies and mounting bits come with it. Choose cable lengths and camera spots to suit your property — the number of cameras on its own doesn't tell you what they'll cover. At each spot, check how wide the lens sees, the lighting there and how well the camera's protected from the weather.
The recorder
1× Hikvision 16-ch 1U 16 PoE 8K NVR
Records all your cameras and runs the app
The cameras
8× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic
The part you put on the wall
The hard drive
2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Stores your recordings
The cable
8× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
Connects each camera back to the recorder
Want other cameras, more storage or longer cables? Load this kit into the builder and swap whatever you like. We check every swap as you make it, so you'll never end up with parts that don't work together.
Product Description

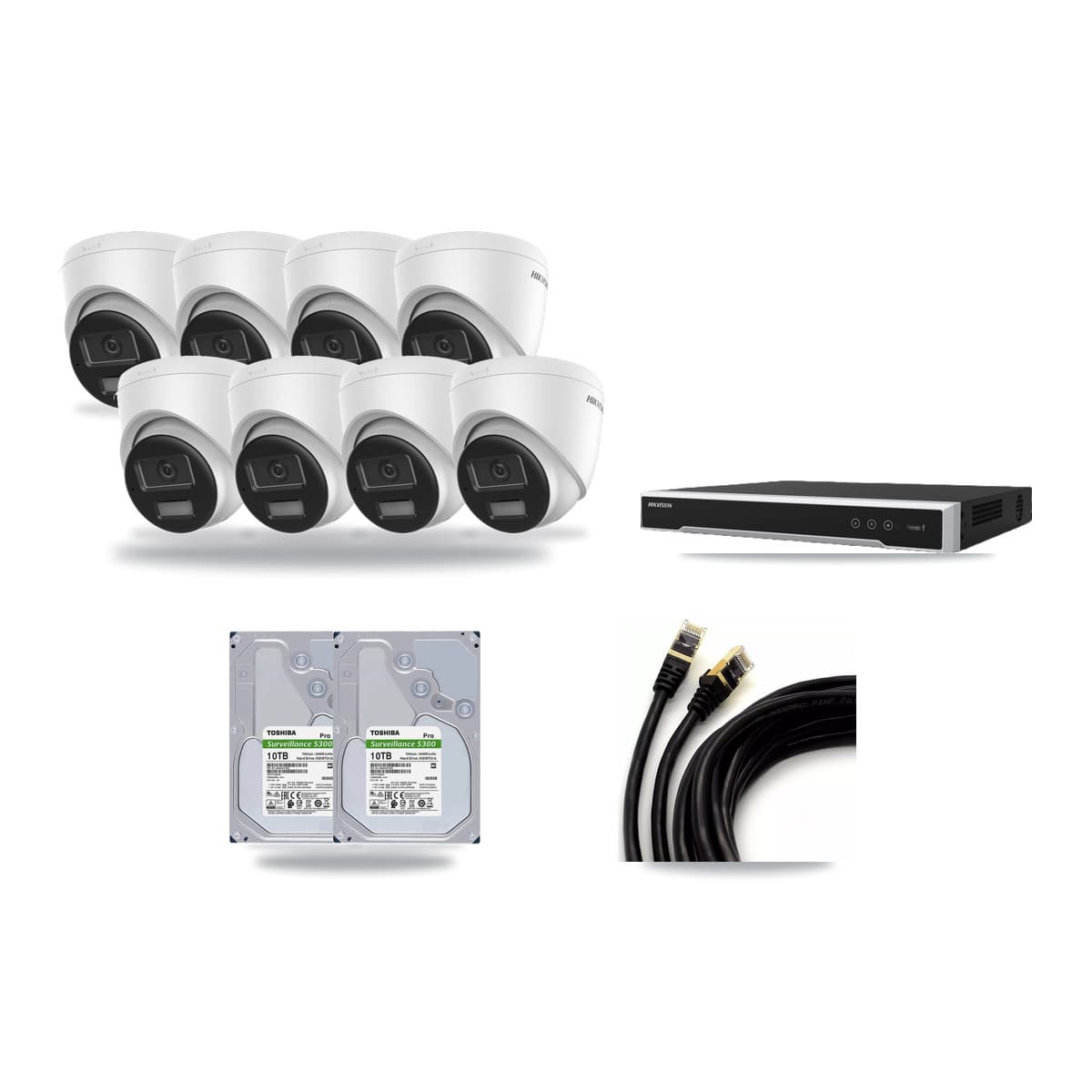

This 16-channel IP PoE CCTV kit pairs the Hikvision DS-7616NI-M2/16P recorder with 8 × Hikvision DS-2CD1383G2-LIU turret cameras. Every camera records at 4K (8MP), with colour pictures at night (Smart Hybrid Light). Recordings go to the 2 × 10TB surveillance hard drives (20TB total): around 57 days of footage with all 8 cameras recording non-stop in H.265, after which the oldest clips are recorded over. Power and cables are sorted too: 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue) ×8. A good fit for a shop, office or small business. What you get: Hikvision 16-ch 1U 16 PoE 8K NVR ×1, Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic ×8, Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM ×2 and 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue) ×8. Watch live or play back on your phone with the free Hik-Connect app for iPhone and Android.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NI-M2/16P + 8× Hikvision DS-2CD1383G2-LIU
- Recorder
- 16-channel Hikvision 16-ch 1U 16 PoE 8K NVR
- Cameras included
- 8× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic
- Camera resolution
- 4K (8MP)
- Storage
- 2× 10TB (20TB total) surveillance HDD — about 57 days of footage, recording all 8 cameras continuously at high quality (H.265)
- Cables & PSU included
- 8× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 8× Hikvision DS-2CD1383G2-LIU 8MP Smart Hybrid Light PoE IP Turret Camera Mic; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 8× 20m Cat6 RJ45 U/UTP Ethernet Network Cable (Blue)
