Product Description

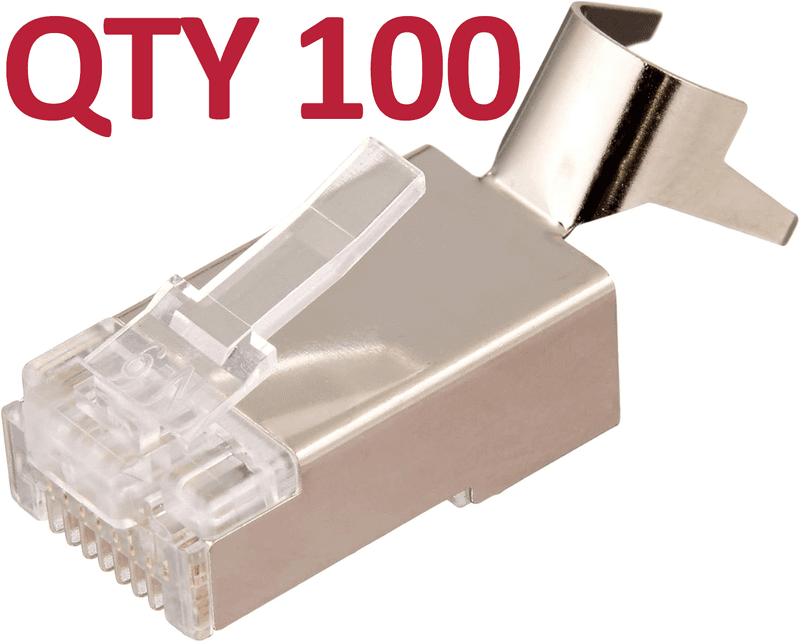

A shielded RJ45 pass-through plug is for terminating Cat5e STP (shielded twisted pair) cable — the metal housing helps block electromagnetic interference on runs near power cables or noisy equipment.
What it does
The 8P8C pass-through design lets you feed all eight conductors right through the plug before crimping, so you can check the wire order is correct before you commit. This helps installers get accurate, consistent terminations rather than guessing conductor position blind.
Where it fits
It connects shielded Cat5e cable to IP cameras, NVRs, switches, routers and patch panels — the usual devices in a CCTV IP surveillance or structured cabling setup. It supports the standard T568A and T568B wiring layouts, so it works with typical Fast Ethernet and Gigabit Ethernet installs.
What to check before buying
- Your cable must be shielded (STP), not unshielded — this connector is built for shielded runs specifically.
- The gold-plated contacts are there for stable conductivity and corrosion resistance over time.
- You'll need a matching pass-through crimp tool designed for this plug style to terminate it properly.
This is a bare connector, not a finished cable — useful if you're building or repairing your own runs rather than buying pre-terminated leads.
Specifications
- Cable Category
- CAT5e
- Connector Type
- RJ45
Technical Specifications
Frequently Asked Questions
Does this work with unshielded (UTP) cable?
It's designed for shielded twisted pair (STP) cable specifically, so use STP cable with it.
What wiring standards does it support?
It supports both T568A and T568B, the two standard Ethernet wiring layouts.
What devices can I connect with it?
It's designed to connect to IP cameras, NVRs, switches, routers and patch panels.
Why choose a pass-through connector over a standard one?
The pass-through design lets you feed conductors right through before crimping, so you can check the wire order is correct first.
